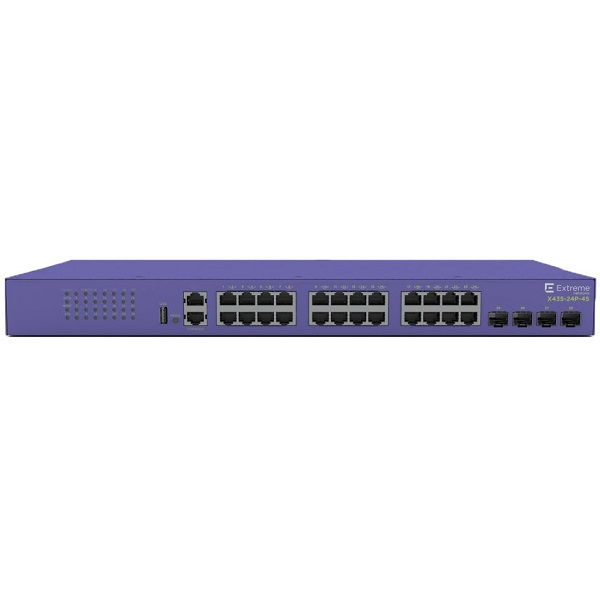

Extreme Networks X435-24P-4S PoE Switch


ExtremeSwitching™ X435 Series
Economical Edge Switches for Distributed Enterprises,
Branches and Small Sites
The ExtremeSwitching X435 Series are economical, standalone Ethernet
switches suited to the needs of cost-conscious enterprises looking for a
value-based edge solution. Powered by Extreme Networks ExtremeXOS,
the X435 Series offers comprehensive Layer 2 switching, static routing,
advanced PoE, role-based policy and comprehensive security services.
This makes it ideal for enterprises looking for cost-effective Ethernet
connectivity in their branch/small sites or at their network edge.
The X435 Series consist of three 8-port compact Gigabit Ethernet
switches and two 24-port Gigabit Ethernet models with up to 4 x 1 / 2.5
Gb SFP uplink ports. 8-port models come without a fan enabling quiet
operation in noise sensitive environments. IEEE 802.3at PoE+ models are
also available to power connected IP Phones, wireless APs, surveillance
cameras or other devices.
The family also includes an 8-port model supporting PoE pass-through that
can draw power from an upstream PoE switch while providing up to 100W
of downstream PoE to connected Ethernet devices.


• 24 x 10/100/1000BASE-T 802.3at (30W) PoE ports
• Full / Half-Duplex (auto-sensing)
• 4 x 1/2.5GBASE-X SFP uplink ports (unpopulated)
• 1 x Serial (console port RJ-45)
• 1 x 10/100/1000BASE-T out-of-band management port
• 1 x USB A port for external USB flash


• Layer 2/MAC Addresses: 16K
• 4096 VLANs/VMANs*
• IPv4 LPM Entries: 32
• IPv4 Hosts: 3100
• IPv6 LPM Entries: 16
• IPv6 Hosts: 500
• IP Multicast groups: 64
*2 VLANs reserved for system use
• IP Multicast (s,v,g) entries: 1500
• 9216 Byte Max Packet Size (Jumbo Frame)
• 8 queues per port
• 1K ingress ACL rules
• OnePolicy Scaling
• Up to 192 authenticated policy users per switch
• Policy Profiles: 63
• Unique Permit/Deny Rules per switch: 184

Extreme Networks X435-24P-4S PoE Switch

$2,202.00 Regular Price
$2,192.00Sale Price
